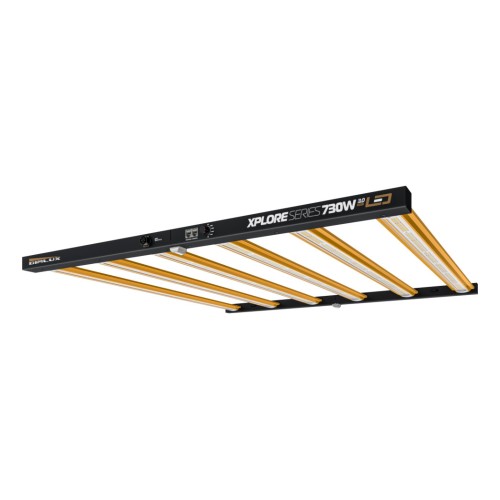

The Dimlux Xplore Series 730W 3.0 is a high-efficiency full-spectrum LED grow light designed for professional indoor cultivation. Combining upgraded LEDs with an integrated high-voltage driver, it delivers 2160 µmol/s of PAR output at 730W with an efficacy of 3.0 µmol/J.

Asymmetric LED placement and Dimlux's high-transmittance optical lenses with integrated Light Benders are designed to improve light distribution towards the edges of the growing area while reducing unnecessary light loss outside the canopy.

High-Efficiency 730W LED

The Xplore 730W 3.0 delivers 2160 µmol/s within the 400–700 nm PAR range and 2197 µmol/s across the wider 350–800 nm spectrum. PAR photon efficacy reaches 3.0 µmol/J at 230–240V AC, providing high light output while maintaining efficient power use.

Improved Canopy Coverage

Rather than positioning every LED symmetrically, the Xplore Series uses an asymmetric diode layout to direct more light towards the outer areas of the canopy. Combined with the 110° beam angle and optical Light Benders, this helps provide more uniform coverage and reduce excessive intensity in the centre of the growing area.

Protective Optical Lens

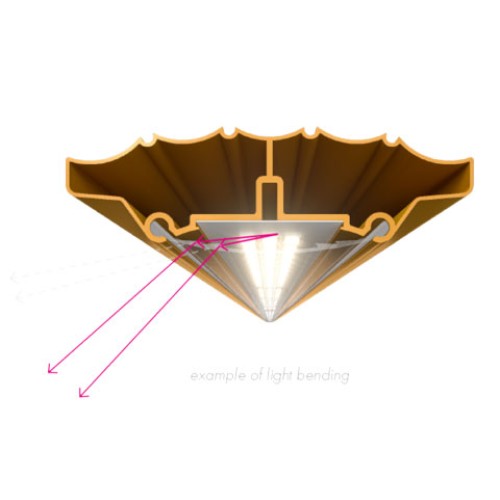

A high-transmittance protective lens covers the LEDs, providing a durable and easy-to-clean surface while directing light towards the crop. The integrated Light Benders are designed to minimise wasted light and improve usable canopy coverage.

Full-Spectrum Output

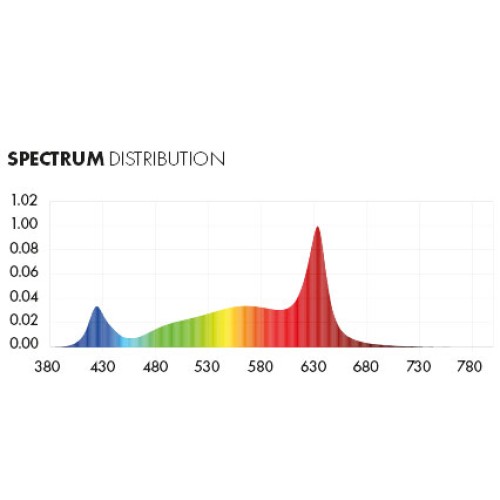

The fixture combines full-spectrum white and red LED diodes to provide a spectrum suitable for multiple stages of plant development, from vegetative growth through flowering.

Integrated Dimming & Control

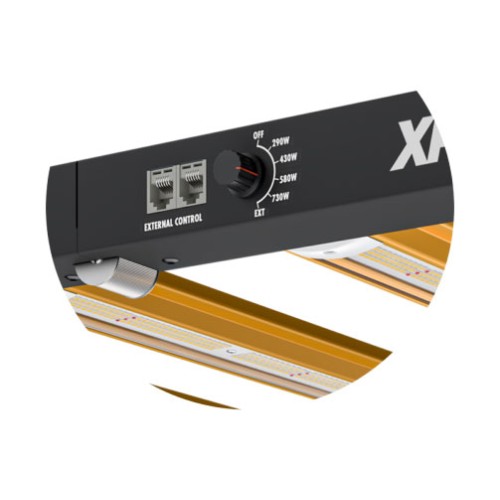

The integrated digital driver provides selectable output settings of OFF, 290W, 430W, 580W and 730W. An external control setting also allows the fixture to be connected to the Dimlux MaxiController for automated and continuously variable lighting control.

Key Features

• 730W full-spectrum LED grow light
• 2160 µmol/s PAR photon output
• 2197 µmol/s total photon output from 350–800 nm
• 3.0 µmol/J PAR photon efficacy
• 3.02 µmol/J total photon efficacy
• Full-spectrum white and red LED diodes
• Asymmetric LED positioning for improved edge coverage
• 110° beam angle
• High-transmittance protective lens with Light Benders
• Integrated 730W high-voltage LED driver
• Built-in selectable dimming levels
• Compatible with the Dimlux MaxiController
• Expandable with compatible UV-A and far-red add-ons
• IP44 rated
• L90 lifetime greater than 50,000 hours
• 5-year standard warranty

Specifications

Expandable Lighting System

The Xplore 730W 3.0 can be expanded with compatible Dimlux UV-A, NIR and combined UV-A + NIR add-ons. The Dimlux MaxiController can also be added for automated switching, variable dimming and compatible sensor-based environmental control.

Ideal For

• 150 × 150 cm indoor growing areas
• Full-cycle indoor cultivation
• Grow tents and grow rooms
• Professional lighting arrays
• Growers requiring external lighting automation
• Installations that may later be expanded with supplemental UV-A or far-red lighting
