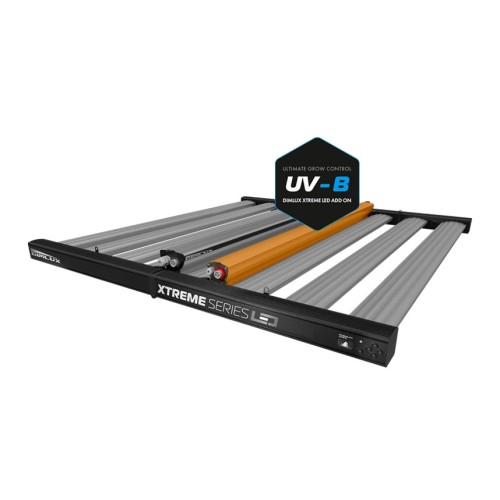

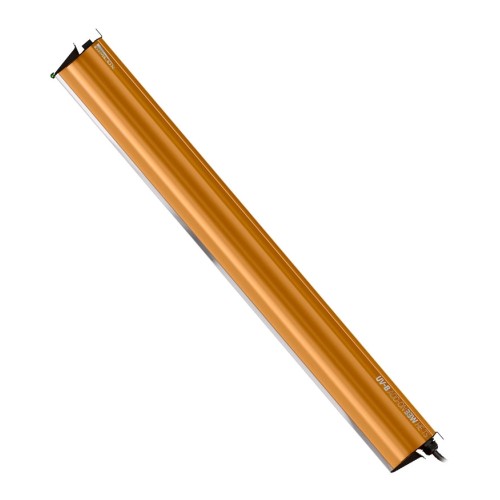

The Dimlux Xtreme UV-B 33W Add-On HE T5 is a high-performance supplemental UV-B fixture designed for use with Dimlux Xtreme Series LED MKII systems and other compatible professional LED installations. It uses a 103 cm / 40 inch T5 High Efficiency UV-B fluorescent tube with a broad 275–375 nm output spectrum.

The fixture is intended to supplement the main grow light rather than replace it, adding controlled UV-B exposure to help stimulate plant stress responses associated with secondary metabolite production. It is particularly suited to growers looking to add UV-B to an existing professional lighting system in a controlled and integrated way.

Broadband UV-B Supplementation

The UV-B tube produces a broadband spectrum from 275–375 nm. Controlled UV-B exposure can influence secondary metabolite production and plant defence responses, including processes associated with resin, terpene and flavonoid development.

UV-B can also contribute to suppression of certain fungi, pathogens and mites when applied appropriately, although dosage and exposure time should be carefully managed.

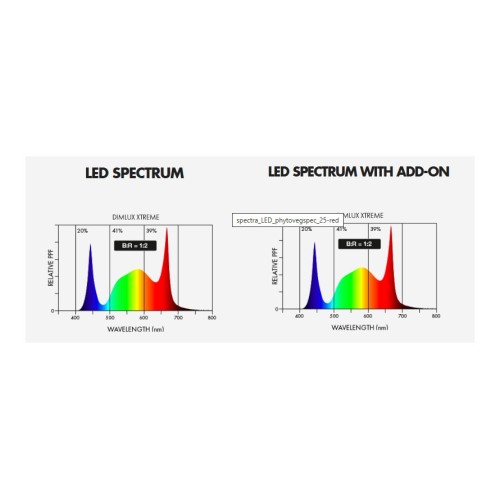

Designed to Complement NIR + UV-A

The UV-B Add-On can be paired with the Dimlux NIR+UV-A Add-On to create a broader supplemental spectrum. Dimlux recommends combining these spectral regions where growers want to use UV-B alongside UV-A and near-infrared light within the same lighting strategy.

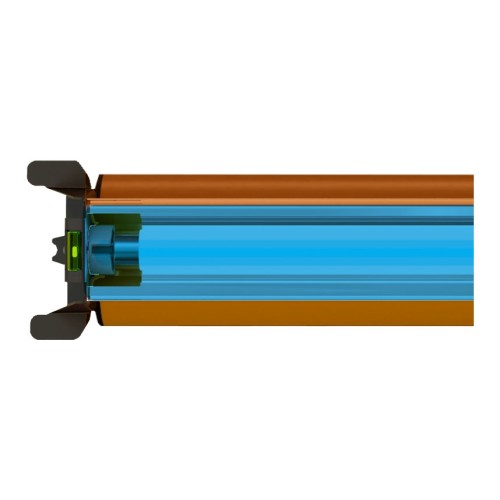

Wide-Beam UV Reflector

A patented wide-beam compact reflector is designed to spread UV-B output across a broad area while reducing concentrated hotspots. This helps provide more even supplemental coverage across the canopy.

Integrated Safety Features

When integrated with the compatible Dimlux Xtreme fixture, a radar safety sensor can automatically shut down UV-B output when required, helping reduce the risk of accidental user exposure.

UV-B radiation can damage eyes and skin, so appropriate protective measures and operating procedures should always be followed.

Smart Control & System Integration

An integrated control module with light sensing enables the UV-B fixture to work alongside compatible Dimlux control systems. It can be used with the Dimlux Maxi Controller and supported third-party control systems for coordinated lighting operation.

Daisy-chain power and Interlink connectivity allow multiple compatible units to be connected together, simplifying larger installations.

Key Features

• 33W nominal UV-B add-on fixture
• 103 cm / 40 inch T5 High Efficiency UV-B fluorescent tube
• 25W UV-B lamp
• Broadband output from 275–375 nm
• Designed to supplement professional LED grow lighting
• Compatible with Dimlux Xtreme Series LED MKII fixtures
• Compatible with 550W, 800W and 1050W Xtreme LED MKII models
• Wide-beam compact UV reflector
• Radar safety shutoff when integrated with compatible Dimlux fixtures
• Integrated controller with light sensor
• Compatible with Dimlux Maxi Controller
• Supports compatible third-party controllers
• Daisy-chain power capability
• Interlink connectivity
• Upgradeable via WiFi or Interlink updates
• Passive cooling with no fans
• Built-in spirit level for accurate horizontal installation
• Can be paired with the Dimlux NIR+UV-A Add-On

Coverage & Mounting

• 150 × 150 cm coverage: Minimum mounting height 75 cm
• 120 × 120 cm coverage: Minimum mounting height 60 cm

Technical Specifications

Compatibility

• Dimlux Xtreme Series LED MKII 550W
• Dimlux Xtreme Series LED MKII 800W
• Dimlux Xtreme Series LED MKII 1050W
• Other compatible fixtures or frames with suitable rail spacing
• Dimlux Maxi Controller
• Compatible third-party controllers

What's Included

• 1 × Dimlux Xtreme UV-B 33W Add-On HE T5
• Mounting kit / brackets for compatible Dimlux Xtreme LED fixtures or frames
• Power and/or Interlink cable depending on version
• User manual

Important Safety Information

This product emits UV radiation and is classified under IEC 62471 Risk Group 3. Direct exposure can be hazardous to the eyes and skin. Always follow the manufacturer's installation, exposure and safety instructions and use appropriate eye and skin protection when required.
