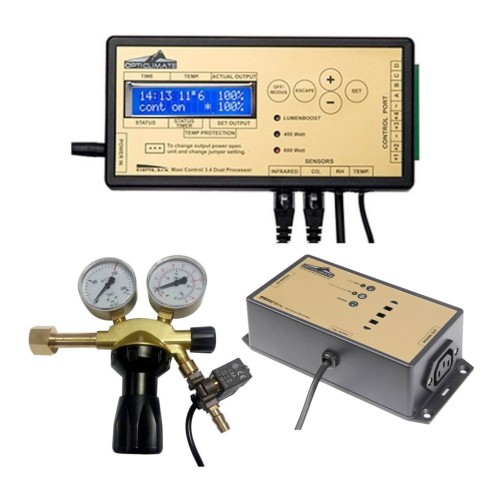

The Dimlux Maxi CO2 Bundle includes the following:

• Maxi Controller
• OptiClimate CO2 Sensor for Maxi Controller
• OptiClimate CO2 Pressure Reducing Valve with Magnetic Valve Pro

Maxi Controller

The Maxi Controller can adjust the output according to the ambient temperature: the lamps are dimmed automatically when the temperature exceeds a maximum pre-defined level.

Using the DimLux with a Maxi Controller enables you to plug the DimLux directly into a wall socket without needing an intervening relay, time delay unit or time switch – which saves you costs.

A DimLux controlled by a Maxi Controller is the only (digital) ballast that does not need to use an inrush current. Inrush currents of conventional (digital)ballasts vary between 50 and 160 Amp, while newer types of digital ballasts use soft-start technology that limits the inrush current to between 50 and 60 Amp – which is still an appreciable current, especially when multiplied by the number of (digital) ballasts incorporated in the circuit.

OptiClimate CO2 Sensor for Maxi Controller

OptiClimate CO2 Sensor for Maxi Controller Gas Protect. Separate OptiClimate CO2 sensor that can be connected to the Maxi Controller, and which also controls the CO2 generator or CO2 pressure reducing valve. The sensors use the Dual Beam NDIR technology which delivers unprecedented calibration stability and accuracy. Other CO2 sensors are Single beam and need to be regularly calibrated. Dual Beam sensors are two sensors in one where the measuring sensor is periodically adjusted by the second sensor. Because the second sensor is active only 5 minutes per month, it does not age or drift.

This Gas Protect version of the CO2 sensor for Maxi Controller has a CO (Carbon Monoxide) and Gas (Natural Gas and Propane) safeguard. The Gas Protect sensor monitors both gases in addition to the CO2 content. In the event of minor gas leakage or CO combustion, the CO2 generator will switch off and cause the alarm LED to illuminate. This ensures safety at all times and prevents plant damage.

OptiClimate CO2 Pressure Reducing Valve with Magnetic Valve Pro

OptiClimate CO2 pressure reducing valve for gas cylinders. This product is of industrial grade quality and has large, easily legible pressure gauges. It is equipped with a high-quality magnetic valve that does not buzz or vibrate. Provided with fine adjustment in increments of 1-30L/min for accurately controlling the climate of any room, large or small. Cheaper valves often have no fine adjustment and are fixed at 15L/min, creating peaks in CO2 levels. To be connected to a regular 10-12mm hose.
