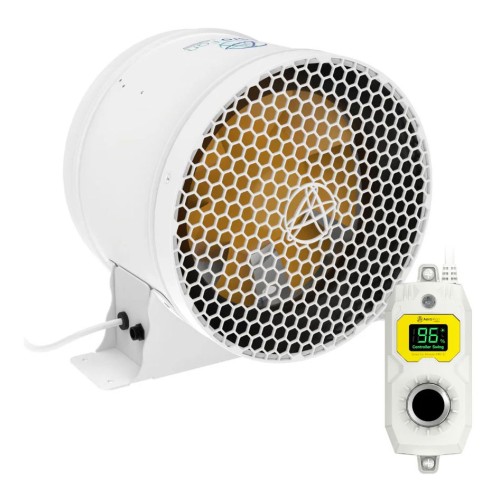

The Metal Inline Duct Ventilation Fan is a compact and efficient fan designed to improve air circulation and ventilation in indoor spaces. With its powerful motor, it moves a significant volume of air, removing stale air, and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment. Ideal for the grow room settings, this fan is a reliable solution for maintaining optimal indoor air quality.

Features

• 100-277VAC Automatic Voltage Sensing
• Unparalleled Controlability Functions when paired with TrolMaster Controllers
• Easily Applicable Mounting Plate Included

Includes

• Metal Inline Duct Ventilation Fan Pro Model
• 1x ECS-7 Cable

V-M10 Specifications

• Operating Voltage: 100-277VAC, 50/60Hz
• Rated Current: 1.94A Max
• Rated input power: 210W Max.
• No. of Blades: 7
• Max. air flow: 1014cfm
• Max. static air pressure: 770Pa
• Rotating Direction: CCW
• Operating temperature: -4~140°F
• Mean Time To Failure (MTTF): 50000H (25°C)
• IP Rating: IP44
• Dimensions: 13.78 x 12.20 x 9.65 inch
• Net Weight: 4.51kg/ 9.94lb

V-M12 Specifications

• Operating Voltage: 100-277VAC, 50/60Hz
• Rated Current: 3.8A Max
• Rated input power: 357W Max.
• No. of Blades: 7
• Max. air flow: 1579cfm
• Max. static air pressure: 814Pa
• Rotating Direction: CCW
• Operating temperature: -4~140°F
• Mean Time To Failure (MTTF): 50000H (25°C)
• IP Rating: IP44
• Dimensions: 10.04 x 12.72 x 11.81 inch
• Net Weight: 6.55KG/14.44lb
