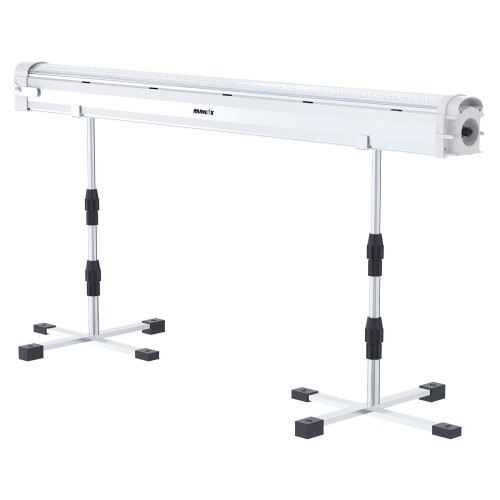

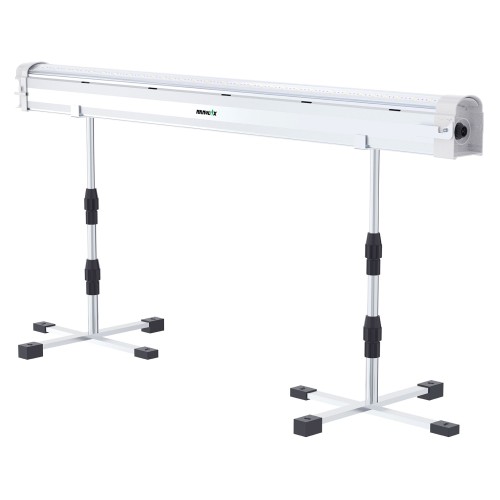

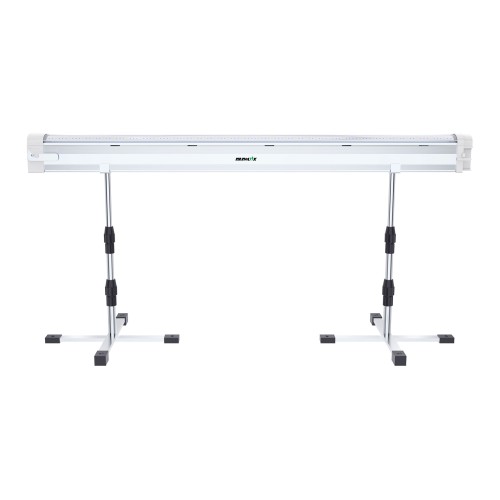

Nanolux SubRay 200W Pro UnderCanopy LED - Coming soon - Price TBC

This high-performance 200W LED grow light combines a wide 150° beam angle with an efficiency of 3.0 µmol/J, delivering powerful and uniform illumination across the growing area.

Featuring a V-shaped PCBA and LED layout, high-proportion 660nm deep red output, adjustable mounting height, and the DEEPLOCK™ Quad-Lock System, the fixture is designed for efficient and scalable indoor cultivation.

Key Features

• 200W high-efficiency LED grow light
• PPE efficiency of 3.0 µmol/J at 240VAC
• PPF output of 600 µmol/s at 240VAC
• V-shaped PCBA and LED layout for wider light distribution
• Wide 150° beam angle
• High proportion of 660nm deep red light
• Three-stage height adjustment
• DEEPLOCK™ Quad-Lock connection system
• Supports daisy chaining of up to 13 fixtures on a single line
• IP65 waterproof construction

150° Wide Beam Angle

The V-shaped PCBA and LED arrangement creates a beam angle of up to 150°, helping distribute light across a wider growing area while improving overall coverage.

660nm Deep Red Spectrum

A high proportion of 660nm deep red light supports photosynthesis and is designed to enhance plant development and yield potential throughout cultivation.

Flexible Height Adjustment

The three-stage height adjustment system allows the fixture position to be adapted to different growing environments and application requirements.

DEEPLOCK™ Quad-Lock System

The DEEPLOCK™ Quad-Lock System uses a precision locking buckle to create a secure connection between fixtures when building daisy-chained lighting installations.

• Precision locking connection
• Designed for improved stability and durability
• Supports up to 13 fixtures connected in series on a single line

Specifications

• Input power: 200W
• Input voltage: AC 208–277V
• Dimming: 0–10V
• PPF: 600 µmol/s at 240VAC
• PPE: 3.0 µmol/J at 240VAC
• Beam angle: Up to 150°
• IP rating: IP65
• Maximum daisy chain: 13 fixtures on a single line
• L90 lifetime: ≥50,000 hours

Coming soon - Price TBC
