Precision controller to automate your lighting fixtures and monitor your grow environment.

Advanced Spectrum Control

Individually control Far Red, UV, and Full Spectrum channels with independent on/off timing and dimming settings, allowing precise light recipes for each growth stage.

Grouped Fixture Control

Supports separate group control within the same daisy-chain, allowing different lighting strategies in one room without additional controllers.

Two Independent Lighting Channels

Each channel can independently control up to 100 Matrix LED fixtures, enabling flexible room layouts and scalable system design.

Custom Presets & Lighting Schedules

Create, save, and run custom lighting presets with programmable schedules to ensure consistent, repeatable results across cycles.

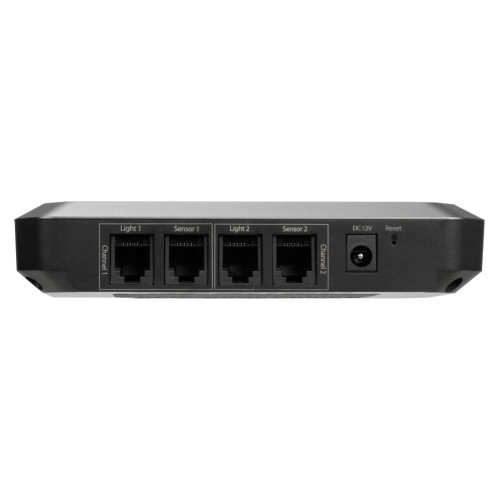

RJ12 Plug-and-Play Connectivity

Simple RJ12 daisy-chain connection allows fast installation and reliable communication between fixtures and the controller.

Specifications:

• Adapter Input: 100-240V, 50/60Hz 0.2A
• Controller Input: 12V, 1A
• Lighting Control Channels: 2
• Lighting Control Level: OFF/25%/40%/50%/60%/80%/100%
• Number of Fixtures Per Channel: 80(0-10V); 100(RS-485)
• Temperature Range: -20-80°C(-4-176°F)
• Humidity Range: 0-100%
