  • HI-9931-2 Wall Mounted EC Controller with Proportional Function

  • £1,221.95

    In Stock

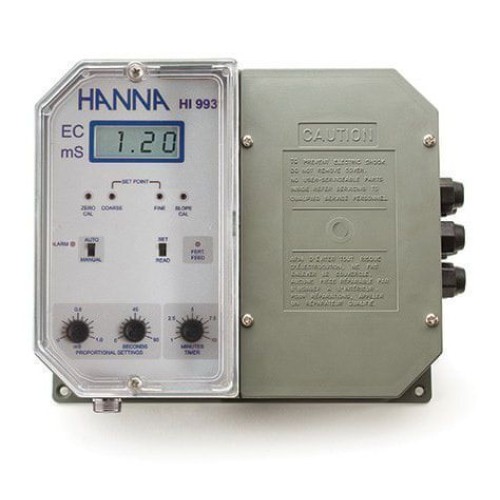

HI 9931 is a wall mounted meter that measures and controls conductivity in the 0 to 10 mS/cm range. A single set point allows for proportional dosage of fertilizer solutions. The proportional settings can be fine tuned through two conveniently positioned dials on the front panel. The time cycle is adjustable from 0 to 90 seconds and the proportional band from 0 to 1.6 mS/cm. Coarse, fine and slope trimmers make accurate setting and calibration easy and convenient. A pump or electro-valve can be wired directly to the controller and be powered through the terminals.

HI 9931 also provides for an alarm relay which is activated when the measurements exceed the set point by a user-selectable margin from 0.5 to 2.5 mS/cm. The alarm also goes off due to a malfunction, the continuous dosing time exceeds the operator adjustable period of 1 to 10 minutes. The alarm can be configured in either normally closed or open position and turned off during maintenance. HI 9931 also provides an isolated output signal which is user selectable between 0-20 or 4-20 mA.

Hanna 4-ring conductivity probes ending in a DIN connector can be quickly attached to the controller. Readings are automatically compensated for temperature variations in the 0 to 50°C (32 to 122°F) range. For quick and easy wiring, HI 9931 comes with extractable terminal modules. Several LED's show whether the set point or alarm relays have been activated.



SKU: ES-3836

Tags: Hanna
