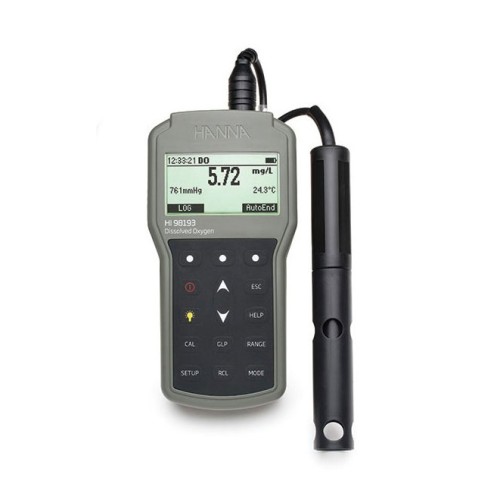

Hanna Professional Waterproof Dissolved Oxygen and BOD Meter HI-98193 by Hanna

Hanna Professional Waterproof Dissolved Oxygen and BOD Meter HI-98193 Hanna
£786.20

The HI-98193 portable dissolved oxygen meter has extended ranges of up to 50 ppm and 600% saturation. When measuring dissolved oxygen, compensations for salinity, temperature and pressure are essential to improve the accuracy and precision of readings.

Salinity compensation allows for direct determination of dissolved oxygen in saline waters. Temperature compensation is automatic with the probes built-in sensor, which features a one or two-point calibration. Pressure compensation with the meter's built-in barometer can be validated against a reference barometer, and if needed, can be recalibrated in user-selectable units (mmHg, inHg, atm, psi, kPa, mbar). With the internal barometer, the HI-98193 is able to compensate for changes in barometric pressure so there is no need for charts, altitude information or external barometric pressure information.

Other features include measurement, methods and calculations for BOD, OUR and SOUR.

Quick connect probe

The HI-764073 polarographic dissolved oxygen probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.

Data Logging

The HI-98193's log-on demand features allows users to store up to 400 samples that can be later transferred to a PC with the HI-920015 USB cable and HI-92000 software.

GLP and On-Screen Help

Comprehensive GL data is directly accessible by pressing the GLP key; the contextual help menu can be accessed to obtain on-screen information and assistance at the touch of a button.

Key Features

  • Quick connect probe - The HI-764073 polarographic dissolved oxygen probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.
  • Data Logging - The HI-98193s log-on demand features allows users to store up to 400 samples that can be later transferred to a PC with the HI-920015 USB cable and HI-92000 software.
  • GLP and On-Screen Help - Comprehensive GL data is directly accessible by pressing the GLP key; the contextual help menu can be accessed to obtain on-screen information and assistance at the touch of a button.
  • IP67 rated waterproof, rugged enclosure
  • Salinity compensation - users can set the salinity value
  • Automatic pressure compensation - built-in barometer with user-selectable units (mmHg, inHg, atm, psi, kPa, mbar)
  • Built-in calculations - determination of Biochemical Oxygen Demand (BOD), Oxygen Uptake Rate (OUR) and Specific Oxygen Uptake Rate (SOUR)
  • Automatic polarisation of probe at startup
  • Ready to use PTFE preformed membrane caps
  • Approximately 200 hours of continuous use

On-screen Features

  • BOD is calculated in mg per litre from the difference between the initial and final dissolved oxygen concentration readings
  • All necessary parameters for BOD testing can be set and displayed at once
  • A list of all saved BOD data can be easily retrieved and shown on the LCD display
  • OUR results measured in mg of oxygen consumed per L per hour
  • SOUR results measured in mg of oxygen consumed per g of volatile suspended solids per hour

Supplied with

  • HI-764073 polargraphic DO probe
  • HI-7041S Electrolyte Solution for Polarographic Sensors, 30ml
  • HI-7040 Bicomponent zero oxygen solution
  • Preformed PTFE membrane caps (2)
  • DO protective cap
  • O-rings (2)
  • Rugged carrying case
  • 100mL plastic beaker (2)
  • HI-92000 PC software
  • HI-920015 micro USB cable
  • Batteries
  • Instruction manual
  • Quality certificate
  • 4 metre cable

PC Interface - Download test results to a computer programmed with HANNA’s Windows® compatible software (HI-92000), directly from equipment via a USB port or a RS232 cable outlet.


Brand: Hanna
Product Code: HI-98193
Availability: In Stock
Price: £786.20
