Nanolux Cloud Control System by Nanolux

Nanolux Cloud Control System by Nanolux



Accessories / Add-ons

Product Options

  • £24.95

    In Stock

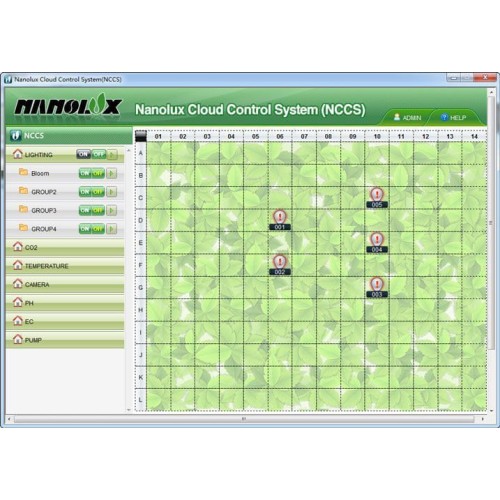

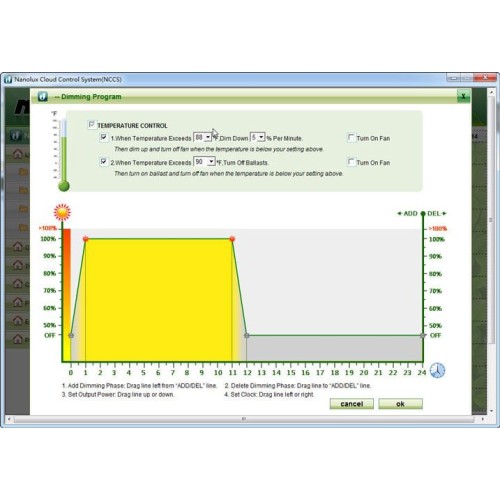

The Nanolux cloud control system was designed and engineered to provide a complete solution for the control of the lighting and environmental controls of a grow room. The NCCS system allows for precisian control of all devices in a grow room through its simple and intuitive computer software program. At the heart of the NCCS is a software program which allows you to specify all of the parameters of your lighting and environmental control settings in your room. The program is then downloaded from your computer to the DTU (data transfer unit). The DTU is the brain of the system and communicates and controls all of the selected functions in the grow room through wireless modem communication. The DTU controls lighting ballasts and environmental control devices by communicating wire/essly with individual RTU (remote terminal unit) USB devices. The NCCS system currently allows for precisian control of your lighting system with dimming, multiple lighting areas, high-temperature dimming features along with fan control. The NCCS will be adding C02 functions, humidity and temperature control, pH and nutrient control, pump control and remote camera features in the near future.

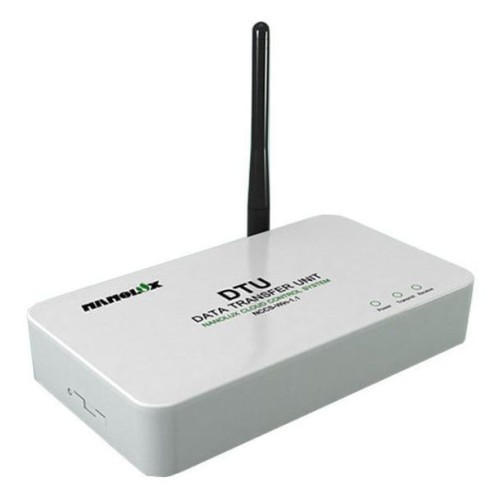

DTU Controller

The DTU is the brain of the NCCS system and communicates and controls all of the selected functions in the grow room through wireless modem communication. The DTU controls lighting ballasts and environmental control devices by communicating wirelessly with individual RTU (remote terminal unit) USB devices.

  • Input Voltage DC 3.3V-6V
  • Wireless Frequency 433.5-434.5 MHz
  • Communication Port > USB2.0
  • Measurement 85MM * 150MM * 28MM
  • Weight 142.4g
  • Controls 999 RTU devices

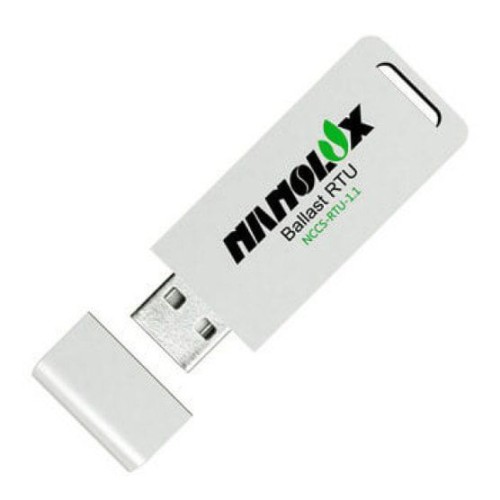

RTU Dongle

The RTU is the data transfer communication device that is installed on the Nanolux Ballasts which allows them to communicate with the DTU. They receive information from the DTU communicating when to dim and turn on and off. They also send data back to the DTU on the status of the ballast.

  • Input Voltage DC 3.3V-6V
  • Measurement 24MM * 71MM * 24MM
  • Weight 11.0g


SKU: ES-4064


Tags: Nanolux
