GSE EC LCD Controller for 2 Fans by GSE

GSE EC LCD Controller for 2 Fans GSE
GSE EC LCD Controller for 2 Fans GSE
£189.00

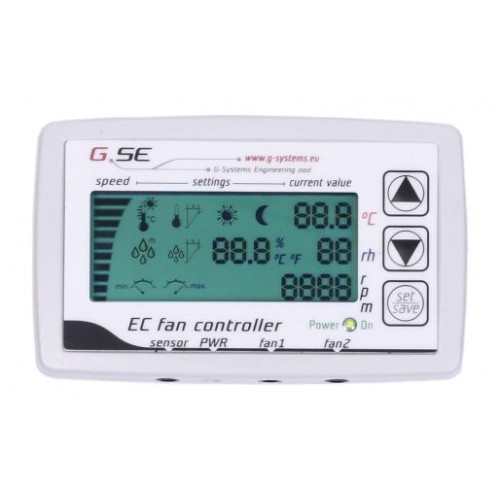

This EC fan controller with LCD display, keyboard and power led allows a very easy setting and reading of all the information's given by the fan such as actual set speed, temperature, humidity day/night, negative pressure of the intake fan and rounds per minute of the exhaust fan. A built in light sensor in the probe recognize day/night modes.

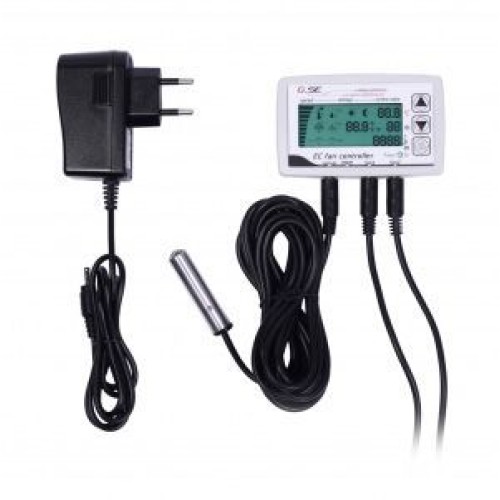

The EC fan controller comes with power adaptor 1m cable, a 4m sensor cable and 2x 4m fan cable including all connectors 4pole 3.5mm jack. It ready to use. You can program 15 individual settings with only three buttons:

Features:

  • Temperature day
  • Temperature hysteresis day
  • Humidity day
  • Humidity hysteresis day
  • Minimum speed day
  • Maximum speed day
  • Temperature night
  • Temperature hysteresis night
  • Humidity night
  • Humidity hysteresis night
  • Minimum speed night
  • Maximum speed night
  • Negative pressure setting
  • Switch sensor level
  • Switch over time day/night

LCD display:

  • Graphic and digital display of speed rpm constant
  • Temperature display constant
  • Humidity display constant
  • Set point selectable not constant, over input keys

Sizes and technical data:

  • Housing: Height = 61mm, Wide 98mm, hight 20mm
  • Weight: 2.5kg
  • Voltage: 12VDC
  • Power: 35mA
  • Protection class: IP 20

Packing contains:

  • 1x EC fan controller
  • 1x Power supply
  • 1x Temp. humidity and light sensor
  • 2x 4m cable to ventilator
  • 1x Manaul

Brand: GSE
Product Code: GSE EC LCD Controller for 2 Fans
Availability: In Stock
Price: £189.00
Qty:
Price Match (conditions apply)
×
* Name:
* Email:
Telephone:
* Competitor link
* Competitor price
Message
Make An Offer (products over £100 only)
×
* Name:
* Email:
Telephone:
* Product GSE EC LCD Controller for 2 Fans
* Your Offer Price
Message
Product Q & A
Questions1 Answers1 | Expand All
Can I use this on two non-digital fans
Can it be used with two 5 inch RVK fans? Does the attachment to the fan fit the fan or is it for another type?
  • Im afraid not, this controller will only be compatible with EC type fans. which are an entirely different technology to RVK fans
    Anonymous
